Cougar LD2 ´Stock Spec 2WD Buggy

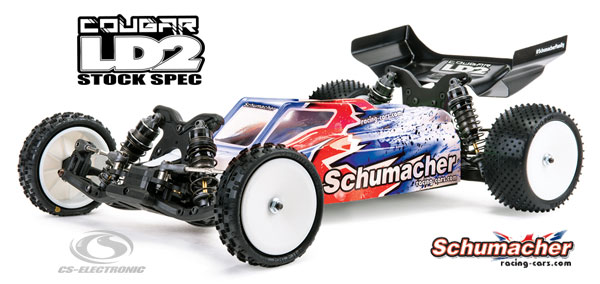

CS-Electronic Cougar LD2 ´Stock Spec 2WD Buggy

Der Cougar LD2 ´Stock Spec ist der ultimative Buggy für 2WD Offroad-Rennen. Er ist schnell, leicht und verfügt jetzt über einen noch tieferen Schwerpunkt für eine verbesserte Kurvengeschwindigkeit. Es ist eine sehr vielseitige Plattform mit hervorragender Leistung auf einer Vielzahl von Griffebenen, von Teppich über Astro bis hin zu Schmutz. Der LD2 wurde so konzipiert, dass er einfach zu fahren und benutzerfreundlich ist, um das beste Rennerlebnis zu bieten. Er wird von Schumachers internationalem Weltklasse-Rennteam unterstützt, das den LD2 weltweit an die Spitze der Podestplätze gebracht hat.


Der Cougar LD2 STOCK SPEC weist folgende Unterschiede zum Standard-MOD-Auto auf.
• Carbon Filled Transmission Housings.
• Slipper Lockout Assembly.
• Carbon Fibre Chassis.
• Alloy Layshaft.
• Carbon Fibre Motor Plate.
• Ultra Light Bodyshell.


Features:
NEW - Class leading front suspension geometry with durable components and a range of optional alloy parts, offering more adjustments to set up your LD2 for all track conditions.
• NEW - Front end, enables zero and minus five wheelbase lengths, without the need of an additional chassis.
• NEW - 2.5mm aluminium chassis, with sensor lead wiring channels.
• NEW - 90° phased lightweight steel CVD driveshafts.
• NEW - Easy access battery fitting system with multiple fitting options.
• NEW - Low drop wing mount.



Compact steering system for improved in-line weight placement, with adjustable and dynamic ackerman.
• Front 5 deg yokes with adjustable roll centre heights.
• Triple position equipment mounting plate.
• ‘Gull Wing’ wishbones with anti roll bar option.
• Durable, lightweight, ball mounted, two piece shock cap with bleed screw.
• Front camber captive ball joints.
• 12mm Hex Wheels with industry standard offset.
• Strong front steering hub, with fine ´Kwik Klip´ adjustment.
• Big bore shocks with big bore “CORE” springs. Threaded collars and twin o-ring sealing.
• Shock seal pack housing with ´O´ ring sealing to prevent loosening.
• Lightweight lower spring retaining cup.
• Threaded spring collars, for better location and adjustment.
• Screw Piston Fixing, with titanium nitride shafts, for easy build, precision and durability.
• Optional rear shock location in front or behind the wishbones, standard in the kit.
• Front shock tower cover to protect your car and the track.
• Rear transmission mounted pivot strap. Increased chassis clearance.
• Adjustable rear roll centres, inboard toe-in and anti-squat.
• Durable, specially formulated composite "S2" material 4mm shock tower mounts.
• Cable management system.


Specially formulated composite moulded side pods for advanced chassis stiffness tuning.
• Lightweight, twin pad 80t slipper clutch with ultra fine adjustment spring.
• Easy access transmission system. For quick diff access and maintenance.
• 23 super precision ball bearings.
• Spur Gear Shield.
• 3 gear, low centre of gravity sealed gearbox, with CNC machined idler.
• Small, low rotating mass transmission. Including gear differential. With 3 position height adjustment, to adjust for driveshaft plunge and mixed track conditions
• Optional ball diff available.


Technische Daten:
Modelltyp: 2WD Wettbewerbsbuggy
Länge: 395mm
Radstand: 275-285mm
Breite: 245mm

Benötigtes Zubehör:
2 Kanal Fernsteuerung
Motor
Servo
Fahrtenregler
Reifen
Lipo-Akku
Lack für Karosserie

Schumacher 1:10 2WD Buggy Cougar LD2 - Stock Spec - Baukasten
Art.Nr: K191
VK: 389,00 €
