 14.04.2020 Kyosho Europe
1:10 Outlaw Rampage Pro R/C EP

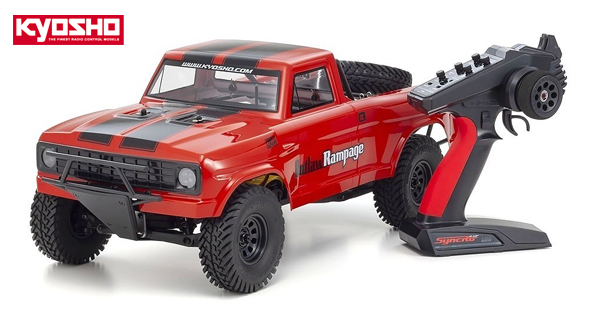

Kyosho Europe 1:10 Outlaw Rampage Pro R/C EP

Kyosho präsentiert den realistischen 2WD Truck Outlaw Rampage Pro 1:10 RC EP RTR - T1 Rot. Dieser bietet die optimale Kombination aus Stil und Leistung für den perfekten Einstieg in die R/C Truck Szene. Der Outlaw Rampage Pro mit einem realistischen Überrollkäfig ergänzt das neue Fahrwerk Konzept des 2WD Truck´s, - maßstabsgetreuer und verbessert die Fahrleistung und vermittelt ein neues Fahrgefühl und mehr Spaß beim Fahren.


Mit einem neuen Chassis, das von Grund auf neu konstruiert wurde, verfügt der Unterboden über eine Doppelquerlenker Federung vorne und eine Link-System Federung hinten in Kombination mit langen Ölstoßdämpfern um ein Leistungsstandard zu erzielen das dem 2WD Outlaw Rampage Pro Truck würdig ist. Das Antriebssystem bietet eine hohe Haltbarkeit und Zuverlässigkeit und ist mit seinem 32-pitch module Getriebe, dem Differentialgetriebe und der Rutschkupplung für hohe Lasten ausgelegt um plötzliche Lastwechsel zu bewältigen.
Die dynamische Leistung des OUTLAW RAMPAGE wird durch den Trophäen Truck Stil der 1970er-80er Jahre mit vorgeschnittener und lackierter Karosserie mit aufgesetzten Aufklebern ergänzt.


● High strength and easy maintenance of the bathtub type chassis combines with a reinforced frame and dustproof monocoque radio box for high durability in hard driving.
● Equipped with underbody worthy of the 2WD trophy truck motif. Solid rear axle differential with link system delivers smooth suspension movement and traction for superior performance.
● Two mounting positions (on chassis) for rear suspension links allow setup to suit different driving conditions.


● Long suspension arms on the front double wishbone suspension deliver high traction and stability. Reflects real car mechanics, just as the rear does.
●Large capacity plastic aeration shocks maintain long suspension stroke in combination with the front and rear suspension systems.
● Omnipotent tires feature original tread pattern to deliver performance and style that matches the appearance of the scale body. Tires are fixed to the 3-piece wheel structure with screws so no gluing is required.
● Original truck body is designed in the image of a 1970´s trophy truck. Chrome grill is available as optional parts (No. OLB051-01SM).
● Thicker and larger 32-pitch module counter gear and diff gear inside gearbox provide added strength. Spur gear is 48-pitch.
● Easy battery installation is possible with the lever lock battery holder. Radio plate with connector holder allows connection or disconnection with one hand.


Technical datas
● Length 561mm (with body)
● Width 262mm (with body)
● Height 231mm (with body)
● Wheelbase 335mm
● Tread (F/R) 204mm/204mm
● Tires (F/R interchangeable) φ108×38mm
● Gear Ratio 12.65 : 1
● Motor 15 turn 540 type (G15 motor)
● Weight 2,400g approx.


Ready Set Contents
● Pre-assembled chassis installed with R/C unit
● Factory finished body with coloring and painted
● Syncro KT-231P+ transmitter
● TEAM ORION VORTEX WP Brush 45A ESC
● G15 brushed motor
● 7.2V-1800 Ni-MH battery
● AC Charger
● Hex wrench
● Cross wrench

Required for Operation
4 x AA-size batteries for transmitter

Kyosho Outlaw Rampage Pro 1:10 RC EP Readyset - T1 Rot
K.34363T1B
