 16.01.2020 Absima
BL Motor Revenge CTM 8 V3

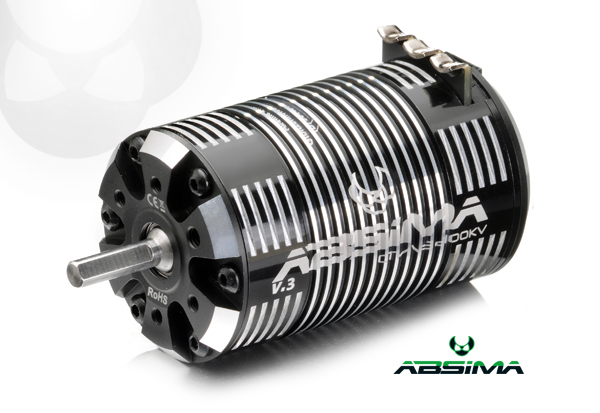

Absima BL Motor Revenge CTM 8 V3

Absima präsentiert seine brandneuen 1/8 Brushless Wettbewerbsmotoren REVENGE CTM 8 V3. NEUES DESIGN - WENIGER GEWICHT - ÜBERRAGENDE LEISTUNG! Die mehrmonatige Entwicklungsarbeit ihrer Ingenieure und Fahrer des Werksteams hat zu Motoren geführt, die eine Leistung erbringen, die über die Anforderungen des höchsten Wettbewerbsniveaus hinausgeht. Alle Versionen verfügen über ein präzisionsbearbeitetes Gehäuse mit integriertem Kühlkörper zur Senkung der Betriebstemperatur. Der gefühlte Betrieb resultiert in einem glatten und kontrollierbaren Leistungsband, während ein leistungsstarker 4-poliger Rotor durch Präzisionskugellager für maximale Leistung und Zuverlässigkeit unterstützt wird.


Erhältlich in 1750KV, 1900KV, 2100KV, 2300KV & 2500KV

Brushless Motor 1:8 "Revenge CTM V3" 1750KV
Artikel-Nr.: 2130063
UVP: 109,95 EUR


FEATURES:
• CNC-machined lightweight can
• High-torque stator
• High strength, balanced rotor
• Optimized air cooling
• Stainless steel ball bearings
• Silver-plated solder tabs
• Adjustable timing
• Sensored (cable included)
• 4-Pole
• Developed for maximal performance
• ROAR aproval (pending)

TECH SPECS:
• Turns: 1750KV
• Power: 1670W
• Current A: 110A
• Efficiency: 88%
• Voltage/Cells: 4-6S LiPo
• Ø drive shaft: 5.0 mm
• Length drive shaft: 18.3 mm
• Ø w/o solder tabs: 42.0 mm
• Length of motor can: 69.0 mm
• Weight: 320 gr


Brushless Motor 1:8 "Revenge CTM V3" 1900KV
Artikel-Nr.: 2130067
UVP: 109,95 EUR

FEATURES:

• CNC-machined lightweight can
• High-torque stator
• High strength, balanced rotor
• Optimized air cooling
• Stainless steel ball bearings
• Silver-plated solder tabs
• Adjustable timing
• Sensored (cable included)
• 4-Pole
• Developed for maximal performance
• ROAR aproval (pending)

TECH SPECS:
• Turns: 1900KV
• Power: 1830W
• Current A: 118A
• Efficiency: 88%
• Voltage/Cells: 4-6S LiPo
• Ø drive shaft: 5.0 mm
• Length drive shaft: 18.3 mm
• Ø w/o solder tabs: 42.0 mm
• Length of motor can: 69.0 mm
• Weight: 320 gr


Brushless Motor 1:8 "Revenge CTM V3" 2100KV
Artikel-Nr.: 2130064
UVP: 109,95 EUR

FEATURES:

• CNC-machined lightweight can
• High-torque stator
• High strength, balanced rotor
• Optimized air cooling
• Stainless steel ball bearings
• Silver-plated solder tabs
• Adjustable timing
• Sensored (cable included)
• 4-Pole
• Developed for maximal performance
• ROAR aproval (pending)

TECH SPECS:
• Turns: 2100KV
• Power: 2070W
• Current A: 125A
• Efficiency: 88%
• Voltage/Cells: 4-6S LiPo
• Ø drive shaft: 5.0 mm
• Length drive shaft: 18.3 mm
• Ø w/o solder tabs: 42.0 mm
• Length of motor can: 69.0 mm
• Weight: 320 gr


Brushless Motor 1:8 "Revenge CTM V3" 2300KV
Artikel-Nr.: 2130065
UVP: 109,95 EUR

FEATURES:

• CNC-machined lightweight can
• High-torque stator
• High strength, balanced rotor
• Optimized air cooling
• Stainless steel ball bearings
• Silver-plated solder tabs
• Adjustable timing
• Sensored (cable included)
• 4-Pole
• Developed for maximal performance
• ROAR aproval (pending)

TECH SPECS:
• Turns: 2300KV
• Power: 2100W
• Current A: 145A
• Efficiency: 88%
• Voltage/Cells: 4-6S LiPo
• Ø drive shaft: 5.0 mm
• Length drive shaft: 18.3 mm
• Ø w/o solder tabs: 42.0 mm
• Length of motor can: 69.0 mm
• Weight: 320 gr


Brushless Motor 1:8 "Revenge CTM V3" 2500KV
Artikel-Nr.: 2130066
UVP: 109,95 EUR

FEATURES:

• CNC-machined lightweight can
• High-torque stator
• High strength, balanced rotor
• Optimized air cooling
• Stainless steel ball bearings
• Silver-plated solder tabs
• Adjustable timing
• Sensored (cable included)
• 4-Pole
• Developed for maximal performance
• ROAR aproval (pending)

TECH SPECS:
• Turns: 2500KV
• Power: 2650W
• Current A: 160A
• Efficiency: 86%
• Voltage/Cells: 3-4S LiPo
• Ø drive shaft: 5.0 mm
• Length drive shaft: 18.3 mm
• Ø w/o solder tabs: 42.0 mm
• Length of motor can: 69.0 mm
• Weight: 320 gr
