 05.08.2016 Absima/TeamC
Brushless Combo Set Thrust BL ECO

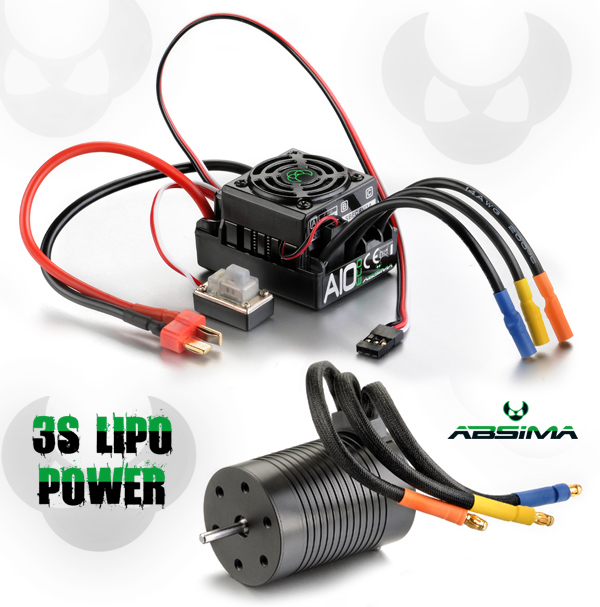

Absima/TeamC Brushless Combo Set Thrust BL ECO

Bock auf ballern mit bis zu 3 Zellen LiPo Power? Das neue Absima Kraft Paket. Du hast eine lahme Gurke am Start und bist es leid immer das Opfer zu sein? Dann setz deinem 1:10er Bock das ´Thrust´ Herz ein und erlebe Deine neue, jetzt mit bis zu 3S Befeuerung vor Kraft strotzende, Schnittenschaukel von ihrer abgefahrenen Seite.
Druckvoll, wasserdicht und echt sparsam für Deine Börse. In Punkto Qualität bleibt auch kein Wunsch offen. Zahlreiche Tests unter extremen Bedingungen wurden mit Bravour abgeschlossen.

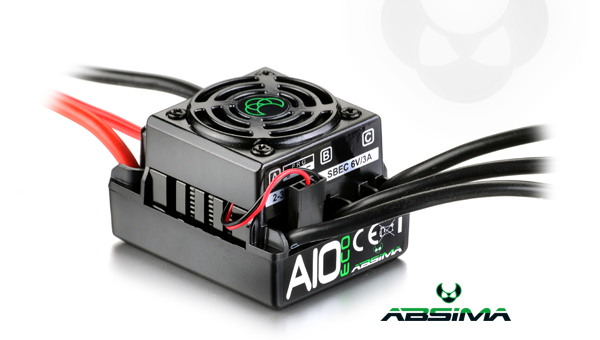

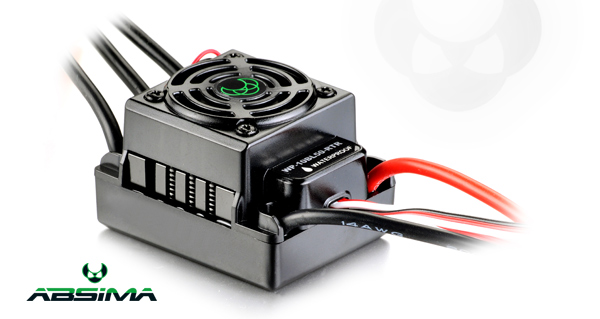

Features Brushless Regler:
• Wasserdichter 50A Regler inkl. Lüfter
• 3S LiPo einsatzbereit
• T-Plug Akkustecker
• Motoranschluß über 3.5mm Goldkontakt Stecker und Buchsen
• Sofort fahrbereit
• Einfache Kalibrierung
• Sensorlos
• NiMH 4 - 9 Zellen & LiPo 2 - 3 Zellen Betrieb
• Überhitzungsschutz 95°
• Kurzzeit Belastung 300A
• BEC 6V / 3A
• Betriebsspannung 4.8 – 11.1V
• Motor timing 18.75 deg.
• Motorlimit @2S LiPo / 6 Zellen NiMH = Onroad < 8T / Offroad < 11T und Motorlimit @3S LiPo / 9 Zellen NiMH = Onroad < 11T / Offroad < 14T
• Direkt über integr. Set Up Knopf sind folgende Funktionen programmierbar :
+ Brake power 25% - 100%
+ Neutral brake 0% - 40%
+ Fahrmodus Vorwärts - Bremse - Rückwärts oder Vorwärts - Bremse
+ Start Punch von soft bis aggressiv
+ Spannungs Abschaltung von ohne bis 3,4V ( ab Werk LiPo Abschaltung 3.0V/cell )



Technische Daten :
• Maße (L/B/H) : 48.5 x 38 x 32 mm
• Gewicht inkl. Kabel : 90 g

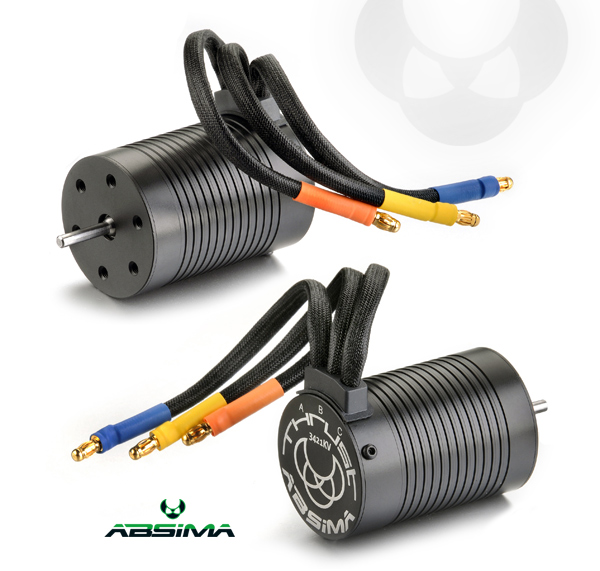

Features Brushless Motor:
• 3421 KV
• 27.400 U/min @ 7.4 Volt
• 4 Pole
• Betriebsspannung 4.8 – 11.1V
• Baugröße 540
• Gehäuselänge : 52.0 mm
• Gehäuse Ø : 36.0 mm
• Wellenlänge : 14.5 mm
• Wellendurchmesser : 3,175 mm
• Gewicht : 200 g

Artikelnummer: 2120002 Verfügbar!!



Brushless Combo Set ´Thrust BL ECO´ 1:10

The Brushless Combo Set ´Thrust BL ECO´ 1:10 is primarily aimed for the owners of 1:10 Ready Set vehicles or KIT vehicles that want to make simple adjustments to increase their racer performance. The set includes the brushless high-performance motor with aluminum housing and the matching speed controller. The system is designed without sensor cable, allowing a particularly easy handling.

Complete sensorless brushless set - ready to use.
Including gold-bonded plug system and t-plug battery connection


Features Brushless ESC:
• Waterproof 50A ESC incl. cooler
• Running mode: forward/brake/reverse or forward/reverse (programmable)
• LiPo cut-off: non-protection / 2.6V / 2.8V / 3.0V / 3.2V / 3.4V (programmable)
• Overheat protection
• Peak amps: 300A
• BEC: 6V / 3A (switch mode)
• Battery: 4-9 cells NiMH / 2-3S LiPo
• Motor limit @ 2S: 8T on-road / 11T off-road
• Motor limit @ 3S: 11T on-road / 14T off-road
• Drag brake: 0% - 40% (programmable)
• Start mode: Level 1 soft - Level 4 very aggresive (programmable)
• Maximum brake force: 25% - 100% (programmable)
• Motor timing: 18.75
• Size: 48,5x38x32 mm
• Weight incl. cable : 90g



Features Brushless Motor:
• 3421KV
• 27.368 RPM/min @ 7.4 Volt
• 4 Pole
• Battery type: 4-9 cells NiMH / 2-3S LiPo
• Size: 540
• Length: : 52.0mm
• Ø w/o fins: 36.0mm
• Shaft length : 14.5mm
• Ø shaft : 3,175 mm
• Weight: : 200g

Item number: 2120002 In stock!!
