    20.05.2019 SMI XRAY News
Neue Stabis für den Xray RX8
SMI XRAY News Neue Stabis für den Xray RX8

Xray präsentiert neue Stabilisatoren für den RX8. Diese wurden für das einstellbare System umgestaltet, so das eine komfortablere Einstellung des Stabis sowie der Beseitigung ermöglicht wird.

Für die Feinabstimmung sind optional Stabilisatoren unterschiedlicher Dicke erhältlich. Mit diesen unterschiedlichen Stabilisatoren könnt ihr das Fahrverhalten an unterschiedlichste Strecken, Bodenbedingungen und Fahrstil anpassen. Die Dicke jedes Stabilisators ist zur einfachen Identifizierung lasergraviert.
• Superfeineinstellung
• Kugellagerbefestigungssystem
• Besonders gleichmäßige Bewegung
• Schnelle und einfache Einstellung
• Lasergravur zur einfachen Identifizierung

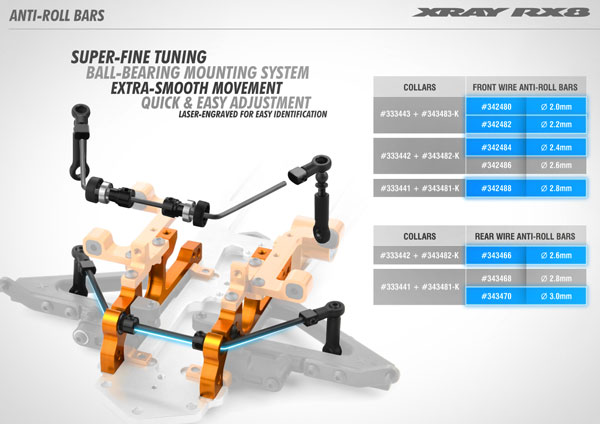

New RX8 Wire Anti-Roll Bars

• Super-fine tuning
• Ball-bearing mounting system
• Extra-smooth movement
• Quick & easy adjustment
• Laser-engraved for easy identification

New RX8 wire anti-roll bars redesigned to work with the adjustable system which allows more comfortable adjustment of the bar as well as remove excessive play.

The wire anti-roll bar is used to increase steering response on small, technical tracks. The wire anti-roll bar is mounted to the bulkheads from the outside to allow quick & easy changes and adjustment. The wire roll bar turns in ball-bearings for maximum precision and freedom of movement. Anti-roll bar height can be quickly & easily adjusted via a screw…quick & easy.

Anti-roll bar wires of different thickness are optionally available for fine-tuning. The thickness of each anti-roll bar is laser-engraved for easy identification.

#342480 must be used with #333443 + #343483-K collars
#342482 must be used with #333443 + #343483-K collars
#342484 must be used with #333442 + #343482-K collars
#342486 must be used with #333442 + #343482-K collars
#342488 must be used with #333441 + #343481-K collars

#342480 Anti-Roll Bar Front 2.0 mm
#342482 Anti-Roll Bar Front 2.2 mm
#342484 Anti-Roll Bar Front 2.4 mm
#342486 Anti-Roll Bar Front 2.6 mm
#342488 Anti-Roll Bar Front 2.8 mm
#343466 Anti-Roll Bar Rear 2.6 mm
#343468 Anti-Roll Bar Rear 2.8 mm
#343470 Anti-Roll Bar Rear 3.0 mm
